Quick Details

  • Condition: New
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SLMT electric shearing machine
  • Model Number: QC12Y-6*4000 electric shearing machine
  • Voltage: 220V/380V electric shearing machine
  • Rated Power: 7.5 kw electric shearing machine
  • Dimension(L*W*H): 4620*1850*1700 mm
  • Weight: 7.3 ton direct shear test machine
  • Certification: ISO 9001:2000,ISO ,CE,SGS ,BV .
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: QC12Y-6*4000 electric shearing machine
  • Cutting thickness: 6(mm) electric shearing machine
  • Cutting length: 4000(mm)
  • Travel times: 9(min)
  • Bumper distance: 20-500(mm)
  • Cutting angel: 1° 30'
  • Power: 7.5
  • Material Strength: ≤450KN/cm
  • Dimension: 4620*1850*1700 mm
  • Name: electric shearing machine

Packaging & Delivery

Packaging Details standard export packaging: electric shearing machine
Delivery Time 15 days after receiving the deposit

Dream World QC12K/QC12Y cnc hydraulic shearing machine price  , electric shearing machine

Best-Selling Machines (press brake ,bending machine,shearing machine ……

  1. All kinds of Best -selling machine for your choice
  2. With small MOQ
  3. Quick delivery time
  4. Target Price




Product Description

Product Name:

Dream World QC12K/QC12Y cnc hydraulic shearing machine price  ,  electric shearing machine

1.CE,ISO,CQC,BV,CNAB
2.cnc system
3.hydraulic oil
4.high quality with low price

Performance of price of shearing machine price :

1.This machine adopts steel plate welding structure, the fuselage using the finite element analysis and design, Vibratory Stress Relief of internal stress, have high strength and good durability.

2.As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.

3.This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance

4.The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

5.The cutting times of this machining tool is displayed on a digital displayer, and the stroke of top blades is steplessly adjustable.

 The main technical parameters of price of shearing machines :

TypeCutting Thickness (mm)Cutting Length(mm)Cutting Angle( °)Material Strength(KN/cm)Backgauge Range(mm)Travel Times(times/min)Power(kw)Dimension
4*2500425001 °30'≤45020-500145.5L3040*W1500*H1550
4*3200432001 °30'≤ 45020-500125.5L3840*W1550*H1600
4*4000440001 °30'≤ 45020-550105.5L4600*W1800*H1700
4*6000460001 °30'≤ 45020-80057.5L6460*W2300*H2400
6*2500625001 °30'≤ 45020-500147.5L3040*W1710*H1650
6*3200632001 °30'≤ 45020-500127.5L3840*W1710*H1650
6*4000640001 °30'≤ 45020-50097.5L4620*W1850*H1700
6*5000650001 °30'≤ 45020-60087.5L3140*W1710*H1620
6*6000660001 °30'≤ 45020-800511L6480*W2100*H2300
8*2500825001 °30'≤ 45020-500117.5L3040*W1700*H1700
8*3200832001 °30'≤ 45020-500811L3860*W1700*H1700
8*4000840001 °30'≤ 45020-500811L4640*W1900*H1750
8*5000850001 °30'≤ 45020-600811L5400*W2400*H200
8*6000860001 °30'≤ 45020-800811L6480*W2100*H2350
10*25001025001 °30'≤ 45020-5001015L3040*W1800*H1700
10*32001032001 °30'≤ 45020-5001015L3860*W2000*H1700
10*40001040001 °30'≤ 45020-6001015L4650*W2100*H2000
10*60001060001 °30'≤ 45020-8001018.5L6500*W2100*H2300
12*25001225001°40'≤ 45020-6001218.5L3140*W2050*H2000
12*32001232001°40'≤ 45020-6001018.5L3880*W2150*H2000
12*40001240001°40'≤ 45020-6001018.5L4680*W2230*H2150
12*5000125000≤ 45020-600618.5L3245*W1900*H1900
12*6000126000≤ 45020-1000522L6900*W2600*H2700
16*2500162500≤ 45020-6001022L3140*W2150*H2000
16*3200163200≤ 45020-6001022L3880*W2150*H2000
16*4000164000≤ 45020-6001022L4650*W2400*H2200
16*5000165000≤ 45020-1000622L5900*W2600*H2600
16*6000166000≤ 45020-1000530L6900*w2700*H2600
20*25002025002°30'≤45020-700837L3440*W2400*H2350
20*32002032002°30'≤45020-700837L4150*W2450*H2350


Overview of price of  hydraulic shear machine



The shearing machine worktable with ball roller and holder for material,easy to handle and operate

The backgague is simple but with elegant appearance

This is for adjusting the blade gap

Pressure gage and valve bank

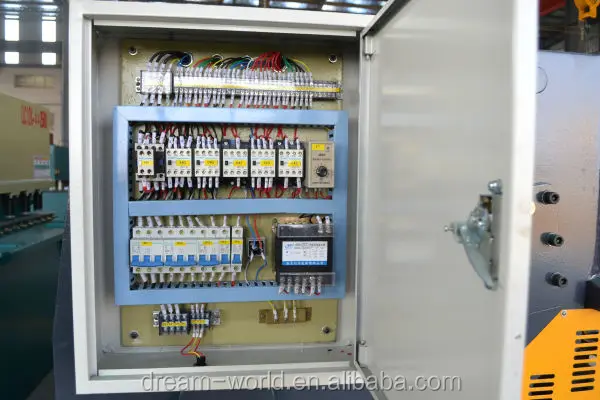

T'he electric elements with Siemens and Chint Brand ,but other brands are optional



 CNC controller system(MD11,DAC360,etc) for your choose



  Servo system
