Quick Details

  • Condition: New
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: SLMT, steel sheet cutting machine
  • Model Number: QC12K-6*2500, steel sheet cutting machine
  • Voltage: 220V/380V
  • Rated Power: 7.5kw
  • Dimension(L*W*H): 3040*1710*1650mm
  • Weight: according to the machine
  • Certification: ISO 9001:2000,ISO ,CE,SGS ,BV .
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: steel sheet cutting machine
  • Cutting thickness: 6(mm) steel sheet cutting machine
  • Cutting length: 2500(mm) steel sheet cutting machine
  • Travel times: 14(min) steel sheet cutting machine
  • Bumper distance: 20-500(mm) steel sheet cutting machine
  • Cutting angel: 1° 30' steel sheet cutting machine
  • Power: 7.5 steel sheet cutting machine
  • Material Strength: ≤450KN/cm steel sheet cutting machine
  • Dimension: 3040*1710*1650 steel sheet cutting machine
  • Name: steel sheet cutting machine

Packaging & Delivery

Packaging Details Standard export packaging: steel sheet cutting machine
Delivery Time 15 days after receiving deposit,

2015 new product steel sheet cutting machine , cnc machine steel sheet cutting machine machine made in china


Product Description

Product Name:

2015 new product steel sheet cutting machine , cnc machine steel sheet cutting machine made in china



1.CE,ISO,CQC,BV,CNAB
2.cnc system
3.hydraulic oil
4.high quality with low price


Packaging & Shipping

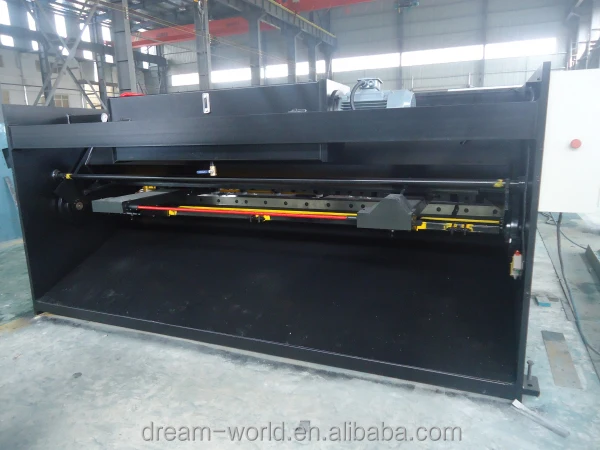

Overview of shearing machine





shearing machine worktable with ball roller and holder for material,easy to handle and operate



Small cylinder to fix the plate ( shearing machine )

The backgague is simple but with elegant appearance



 This is for adjusting the blade gap

Pressure gage and valve bank for shearing machine

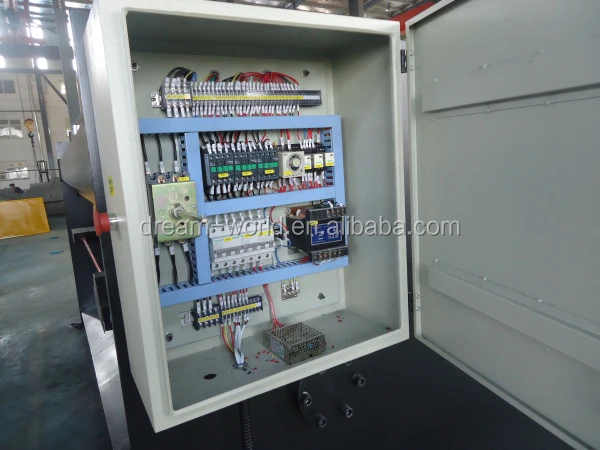

 The electric elements with Siemens and Chint Brand ,but other brands are optional



  CNC controller system(MD11,DAC360,etc) for your choose





Foot pedal for sheet metal shearing machine



The main technical parameters of shearing machine :

TypeCutting Thickness (mm)Cutting Length(mm)Cutting Angle( °)Material Strength(KN/cm)Backgauge Range(mm)Travel Times(times/min)Power(kw)Dimension
4*2500425001 °30'≤45020-500145.5L3040*W1500*H1550
4*3200432001 °30'≤ 45020-500125.5L3840*W1550*H1600
4*4000440001 °30'≤ 45020-550105.5L4600*W1800*H1700
4*6000460001 °30'≤ 45020-80057.5L6460*W2300*H2400
6*2500625001 °30'≤ 45020-500147.5L3040*W1710*H1650
6*3200632001 °30'≤ 45020-500127.5L3840*W1710*H1650
6*4000640001 °30'≤ 45020-50097.5L4620*W1850*H1700
6*5000650001 °30'≤ 45020-60087.5L3140*W1710*H1620
6*6000660001 °30'≤ 45020-800511L6480*W2100*H2300
8*2500825001 °30'≤ 45020-500117.5L3040*W1700*H1700
8*3200832001 °30'≤ 45020-500811L3860*W1700*H1700
8*4000840001 °30'≤ 45020-500811L4640*W1900*H1750
8*5000850001 °30'≤ 45020-600811L5400*W2400*H200
8*6000860001 °30'≤ 45020-800811L6480*W2100*H2350
10*25001025001 °30'≤ 45020-5001015L3040*W1800*H1700
10*32001032001 °30'≤ 45020-5001015L3860*W2000*H1700
10*40001040001 °30'≤ 45020-6001015L4650*W2100*H2000
10*60001060001 °30'≤ 45020-8001018.5L6500*W2100*H2300
12*25001225001°40'≤ 45020-6001218.5L3140*W2050*H2000
12*32001232001°40'≤ 45020-6001018.5L3880*W2150*H2000
12*40001240001°40'≤ 45020-6001018.5L4680*W2230*H2150
12*5000125000≤ 45020-600618.5L3245*W1900*H1900
12*6000126000≤ 45020-1000522L6900*W2600*H2700
16*2500162500≤ 45020-6001022L3140*W2150*H2000
16*3200163200≤ 45020-6001022L3880*W2150*H2000
16*4000164000≤ 45020-6001022L4650*W2400*H2200
16*5000165000≤ 45020-1000622L5900*W2600*H2600
16*6000166000≤ 45020-1000530L6900*w2700*H2600
20*25002025002°30'≤45020-700837L3440*W2400*H2350
20*32002032002°30'≤45020-700837L4150*W2450*H2350

Company Information



  Our customers



Packaging & Shipping



Our Services



Advantage:



1.Our guarantee time is 14 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .



 2.Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely



3.Our factory provide the service for the customer forever, if the customer need operation help, can contact usby MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service.
